Shooting volume: 25 Ltr.
Designed for horiz. & vertically parted core boxes
Core box width & depth: vert./horiz. Partition: 400 x 790 / 800 – 1000 mm
Max. core box height: 600 mm
Max. shooting area: WxD: 550 x 650 mm
Max. weight of core box package (inkl. Shooting plate & press plate): 1800 kg
Machine cycle times:
-
Horizontal core box: 17 sec.
-
Vertical (+ horiz.) core box: 19 sec.
Connected load: 20 kW
Mainly consists of:
-

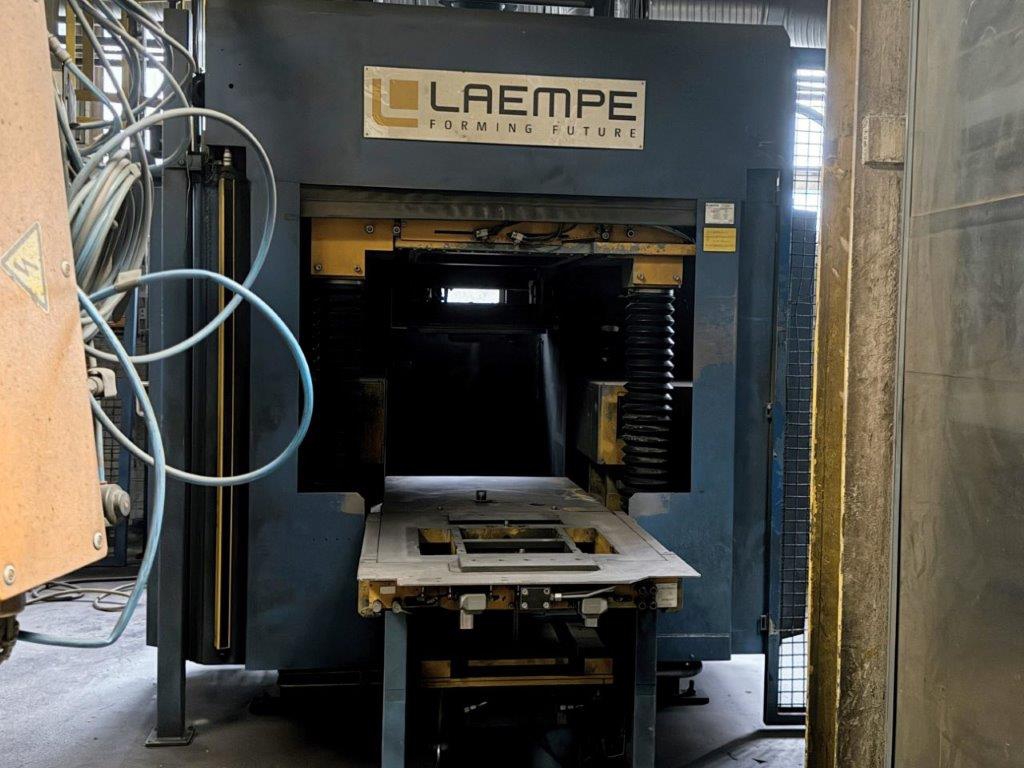

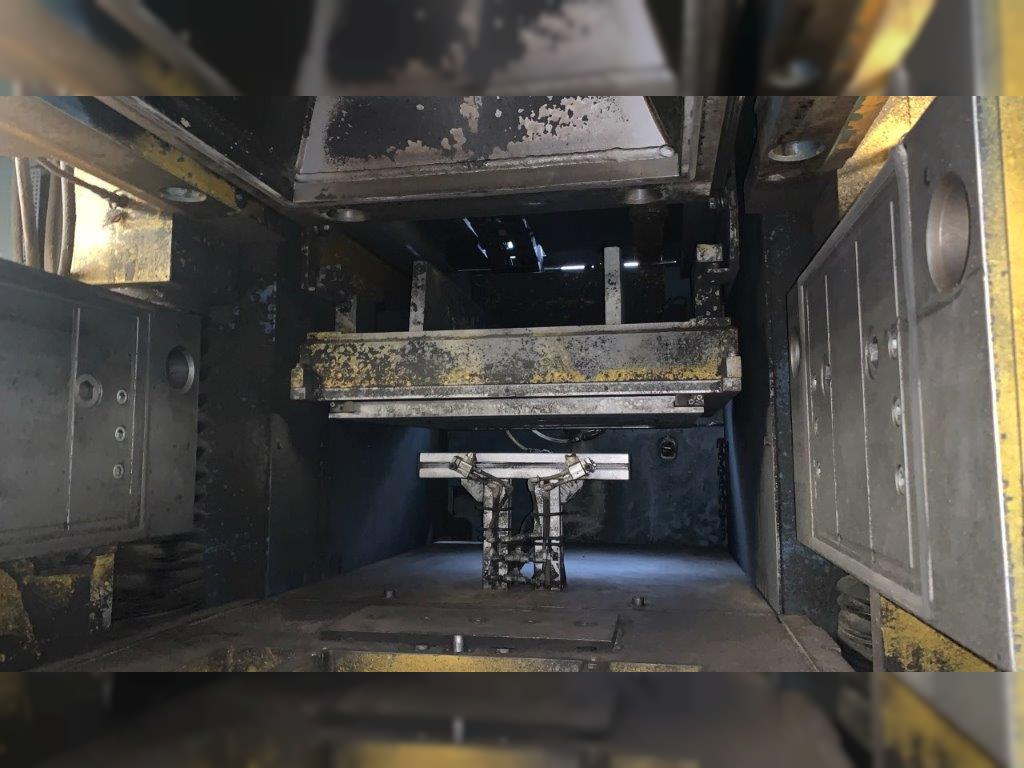

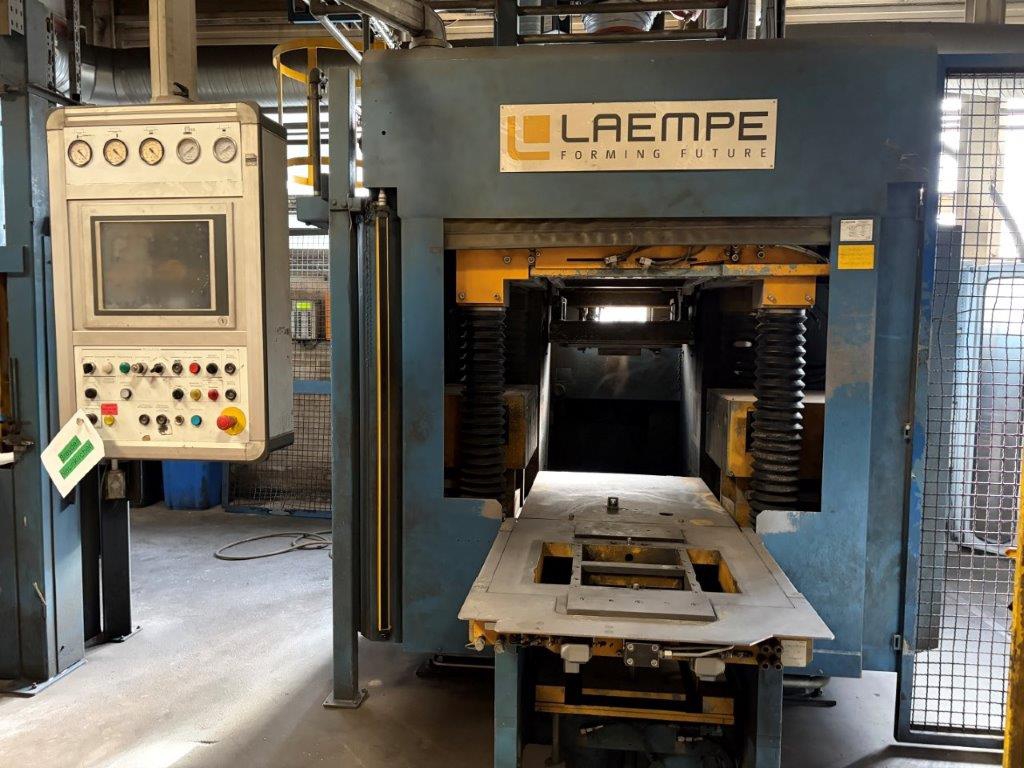

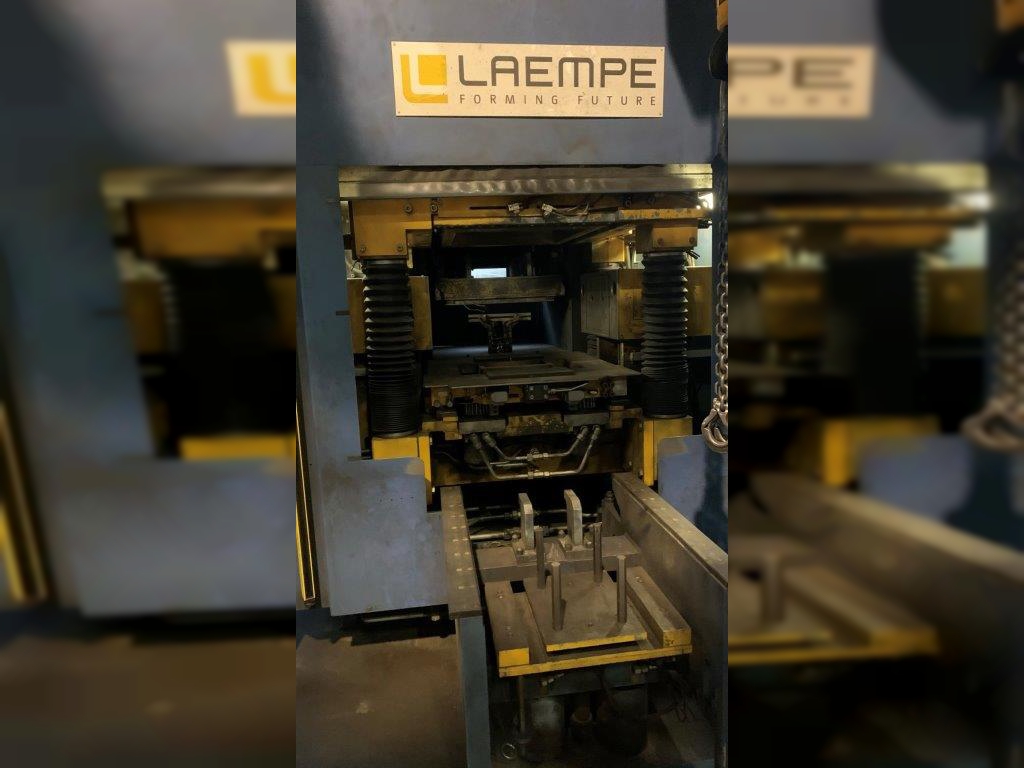

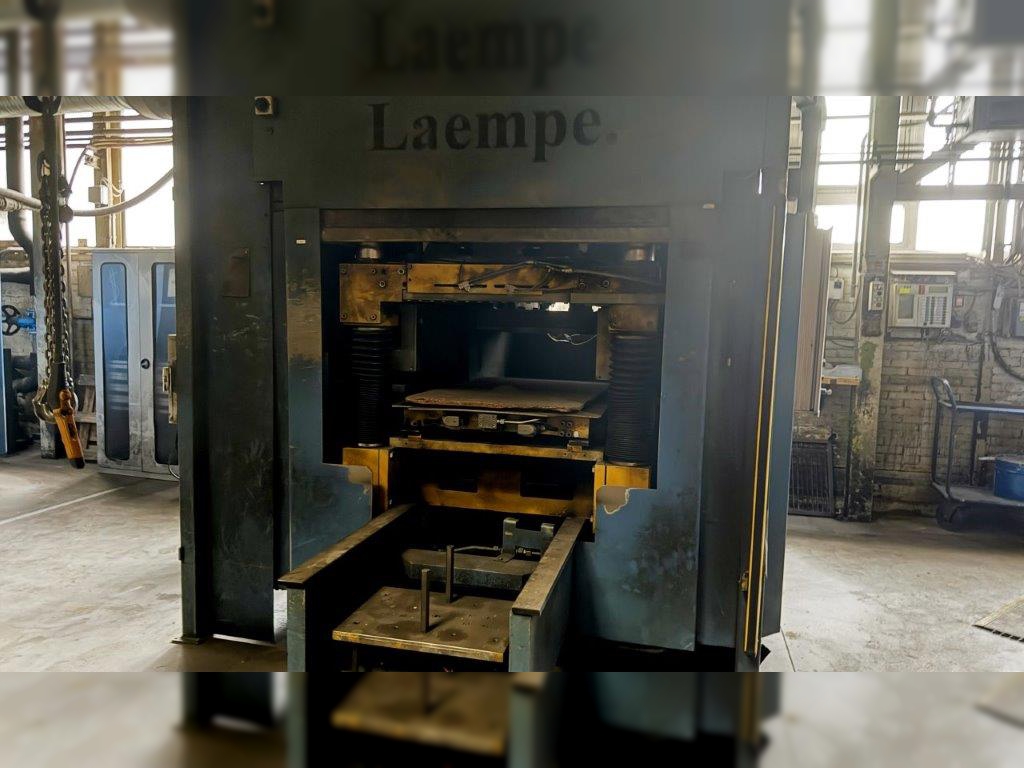

Complete Core shooting machine incl. enclosure
-
Hydraulic power pack
-

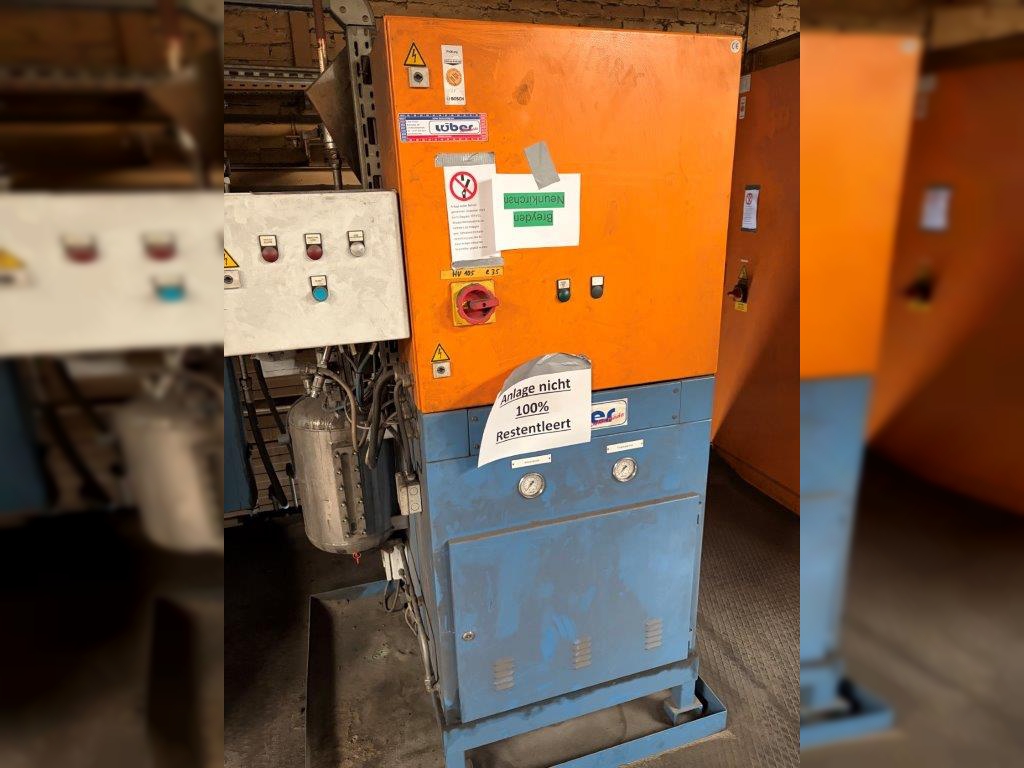

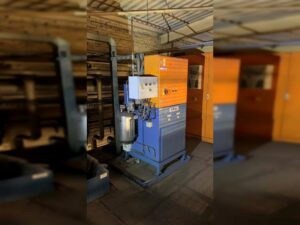

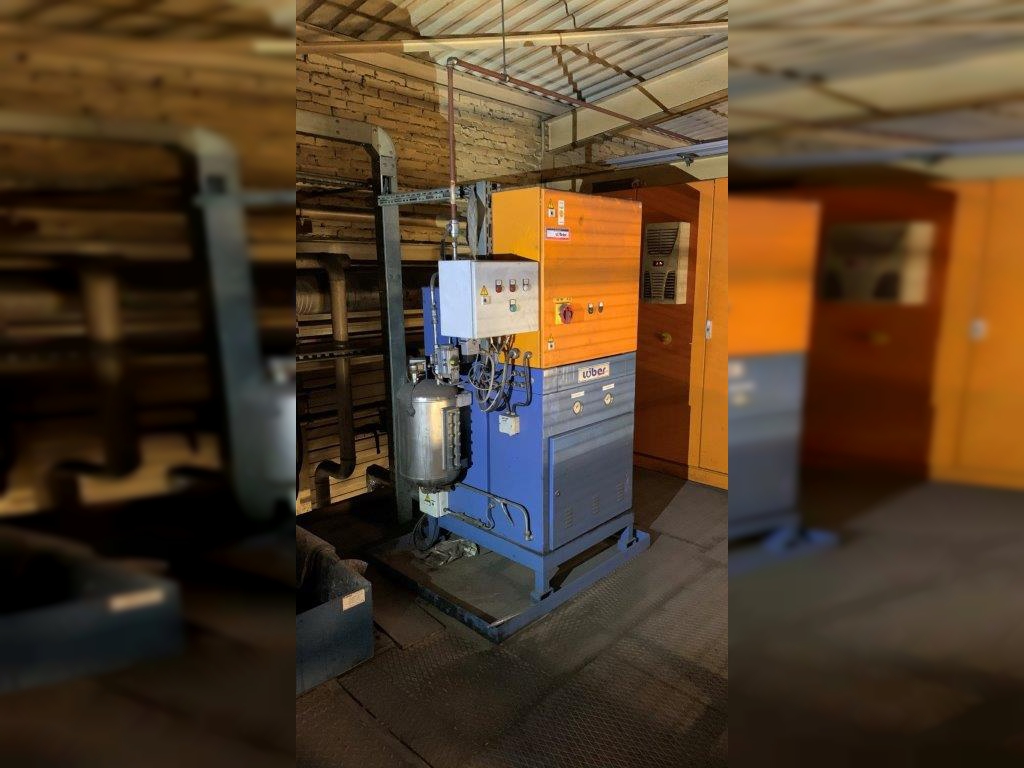

Aut. Gas generator Make: LÜBER Type LW-FDA 1640i (16 kW)
-
Core pick-up robot
-
Core coating tub
-
Electrical control panel with PLC
Not incl.: Core sand mixer
As seen, Ex Works
Without dismantling
