+GF+ Georg Fischer Pouring Furnace, Ind. Heated 16 to used for sale

This pressurized gas-operated, inductively heated casting and holding furnace is suitable

as a Holding and Pouring unit for Automatic Moulding Lines.

Throughput from 2 t/h to max. 35 t/h.

Max. Temp. Gray Cast Iron 1450 °C

Total Capacity: 22.7 tons

Usable Capacity: 16 tons

Inductor:

Power 320 kW

Warm holding capacity: 200 kW (at 1400 °C, furnace vented, 50% furnace fill)

Connected Load: 340 kVA / 3 x 500 V / 50 Hz

Compressed Air for Stopper Control

Pressure: 4 to 6 bar

Consumption per 1000 strokes: approx. 0.10 Nm³/t

Compressed Gas for Control:

Medium: Nitrogen

Pressure: min. 2 bar

Consumption per ton of cast iron: approx. 1 Nm³/t

Mainly consists of:

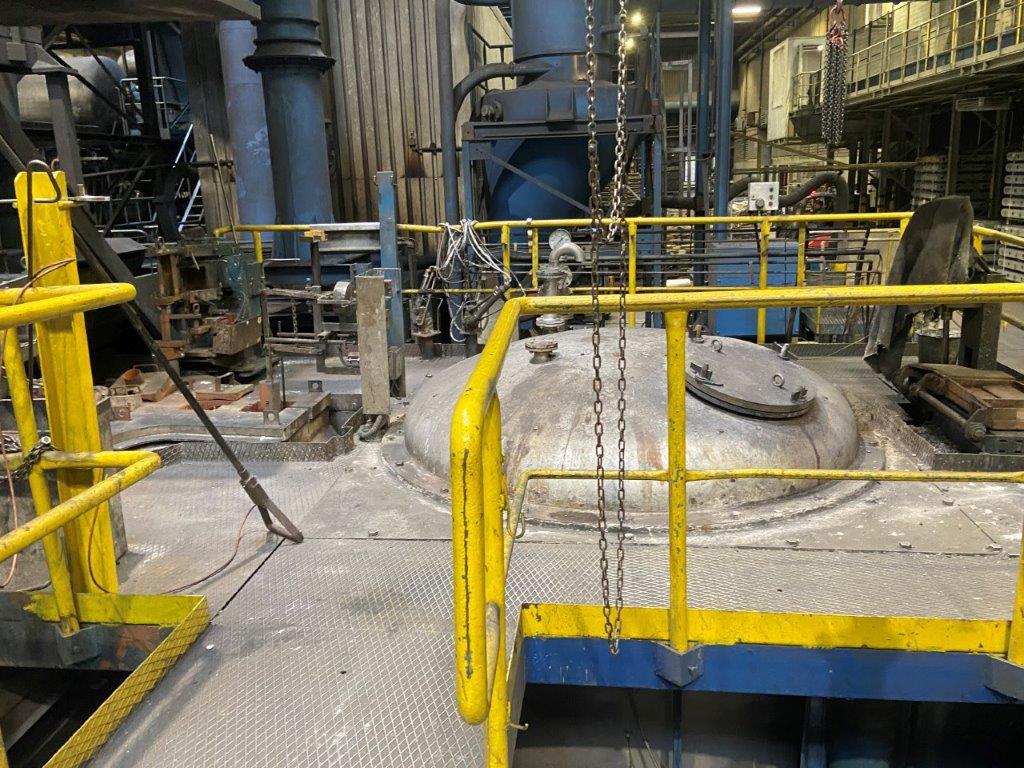

1. 1x Furnace body with lid, transfer carriage, tilting frame, and hydraulics

2. 1x Channel inductor with water-cooled inductor cables

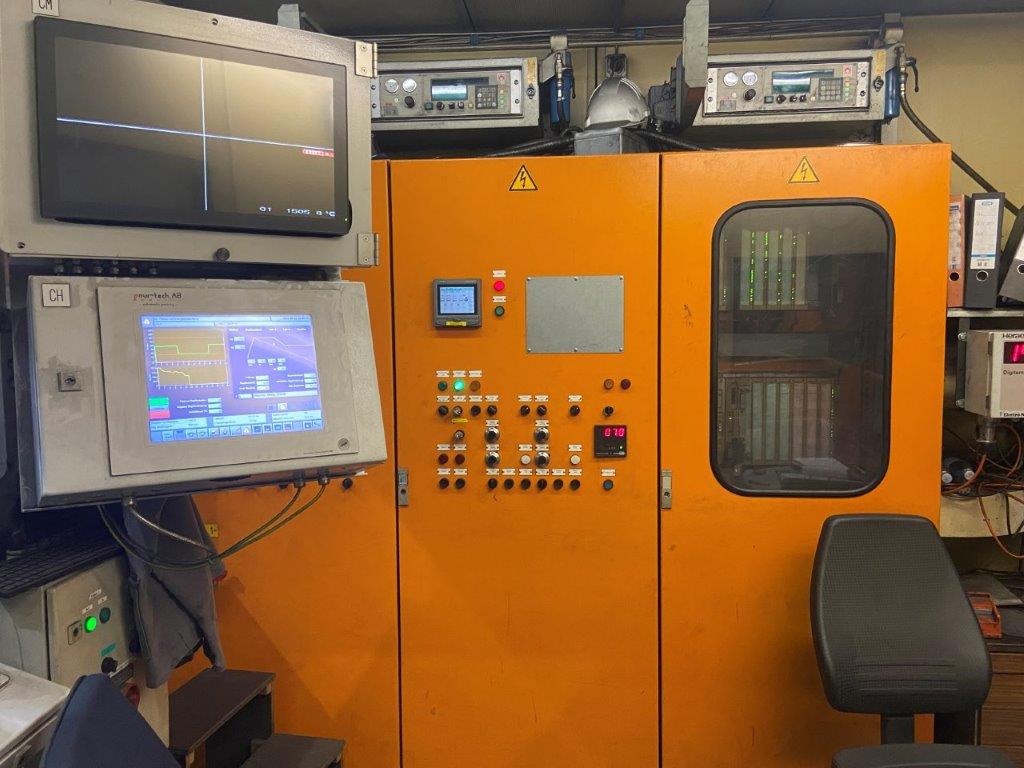

3. 1x Electrical Control Unit Including control cabinet

4. 1x Electrical power unit with high-voltage connection

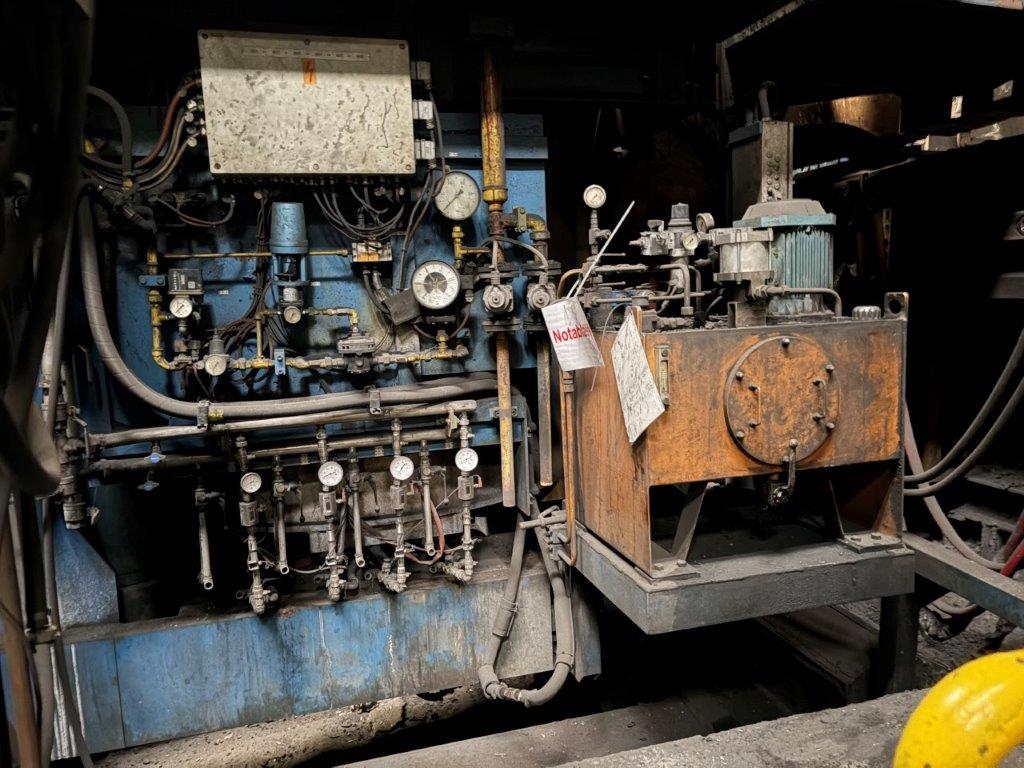

5. 1x Pressure control unit

6. 1x Stopper control unit

7. 1x Water cooling system

As seen, Ex-Works

Without dismantling
