Dry-type tapped transformer 850 kVA; No. 1425 1172

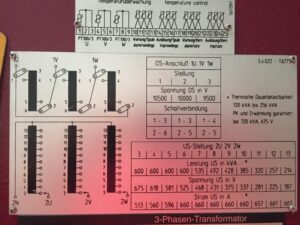

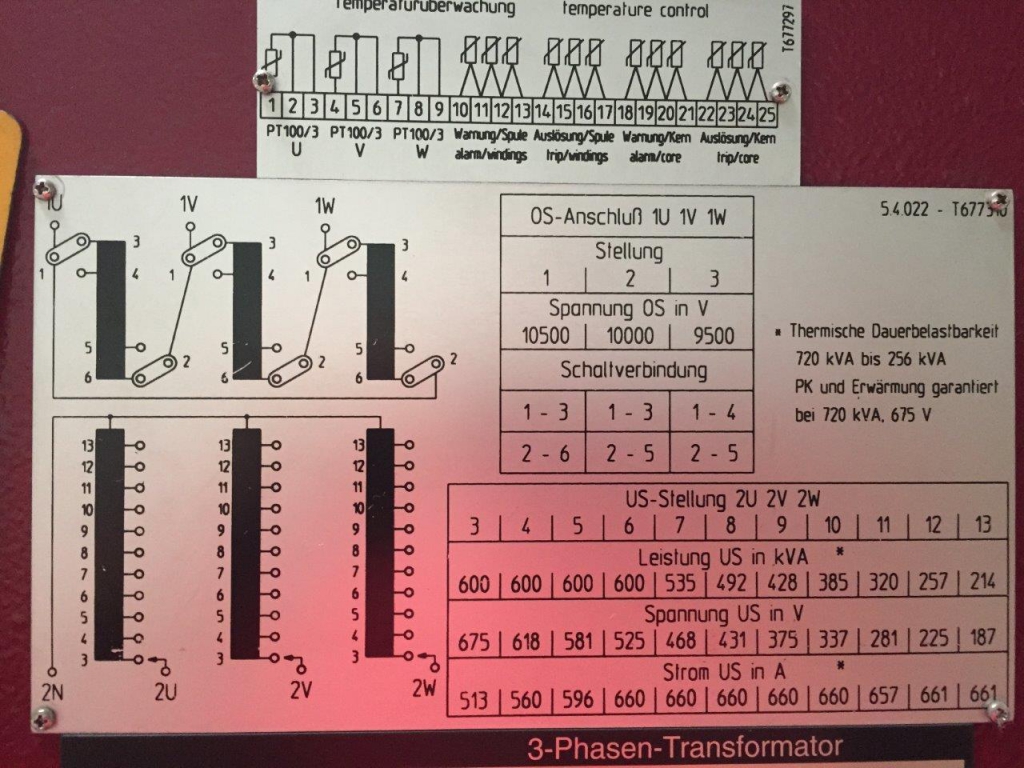

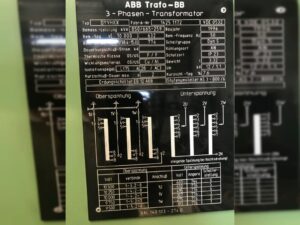

Rated voltage: 10,000 V +/-5% / 665-259 V in 6 steps (see nameplate photo)
Rated current: 49/776 A
Vector group: Dyn5
Total weight: 3,320 kg incl. enclosure
Mainly consist of:
-
3-limb transformer core
-

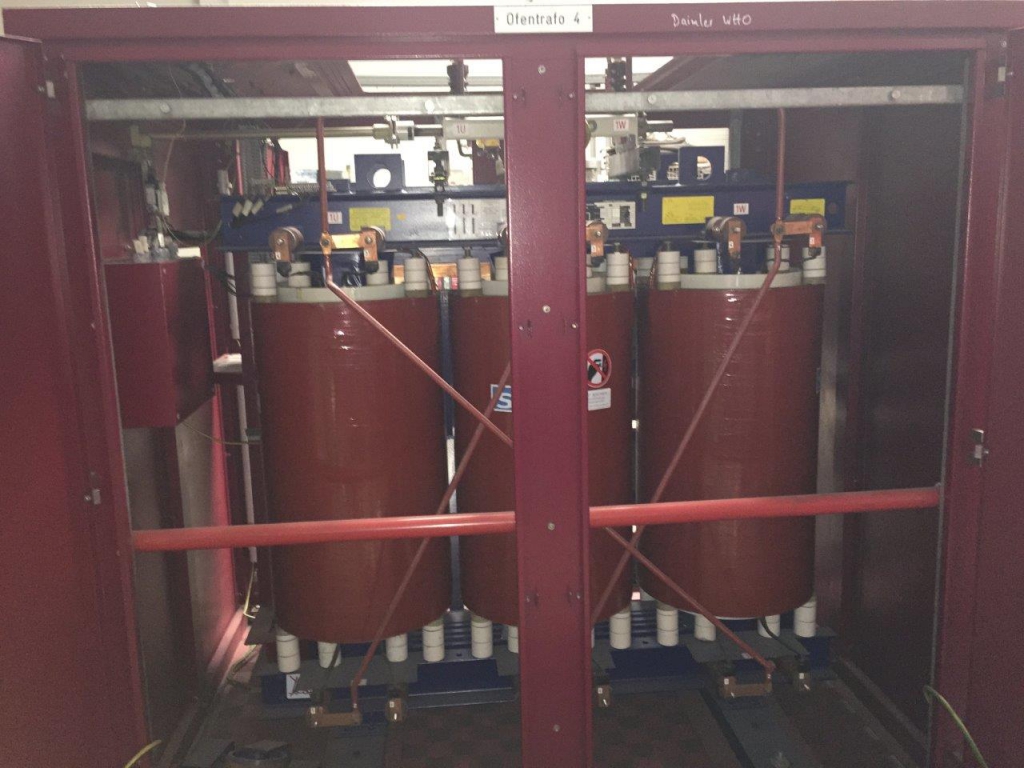

3 HV and 3 LV cast-resin coils
-

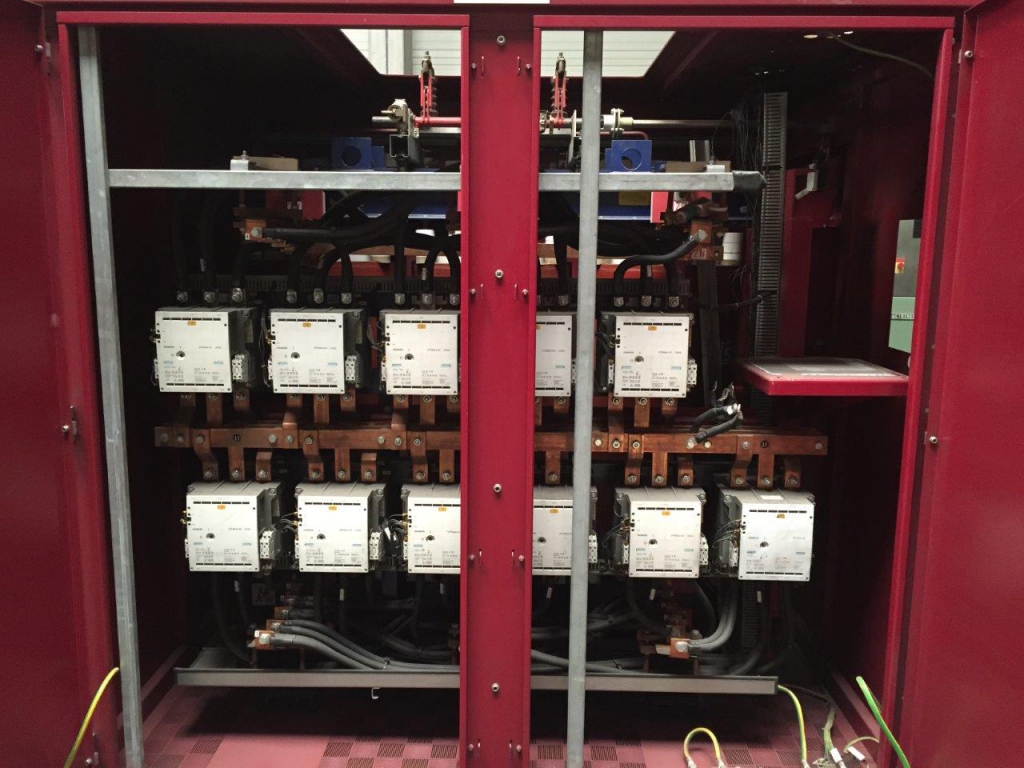

1 set of power contactors wired to the transformer for the individual transformer steps
-

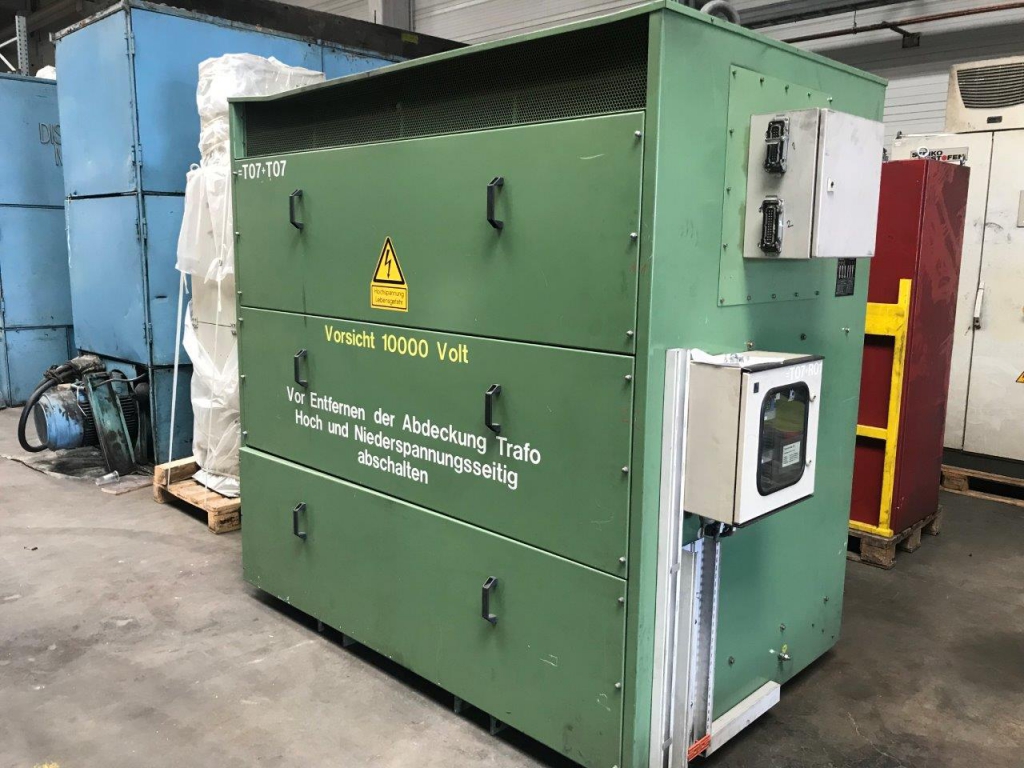

Transformer enclosure
-

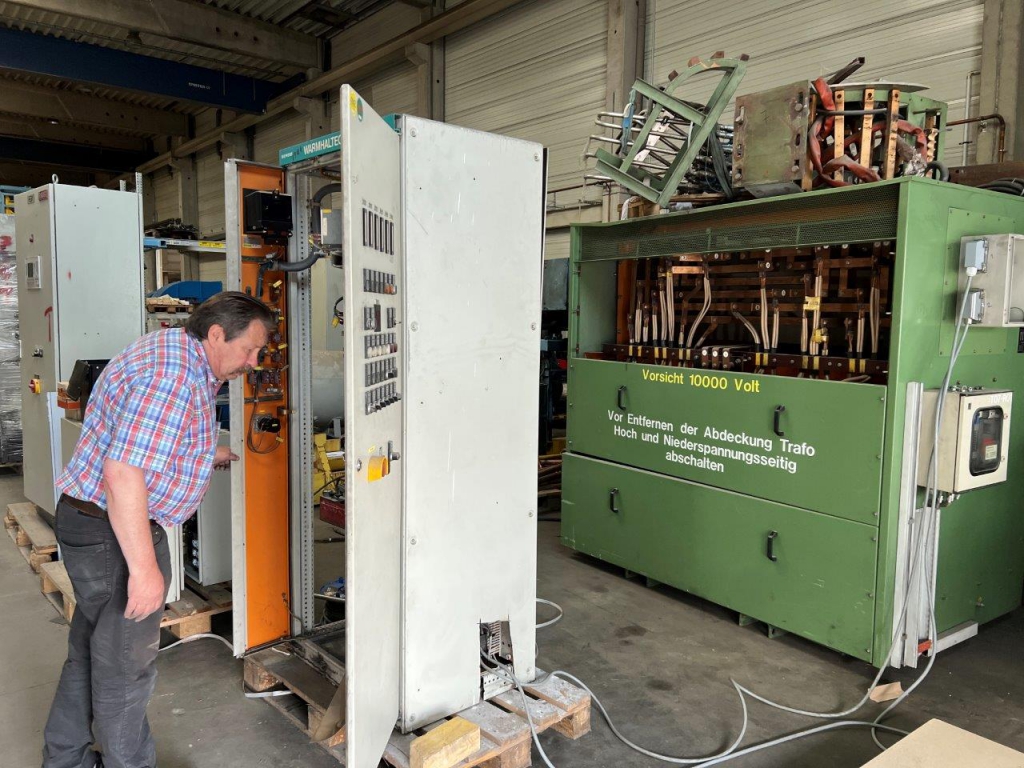

Control and operation cabinet (optional)
