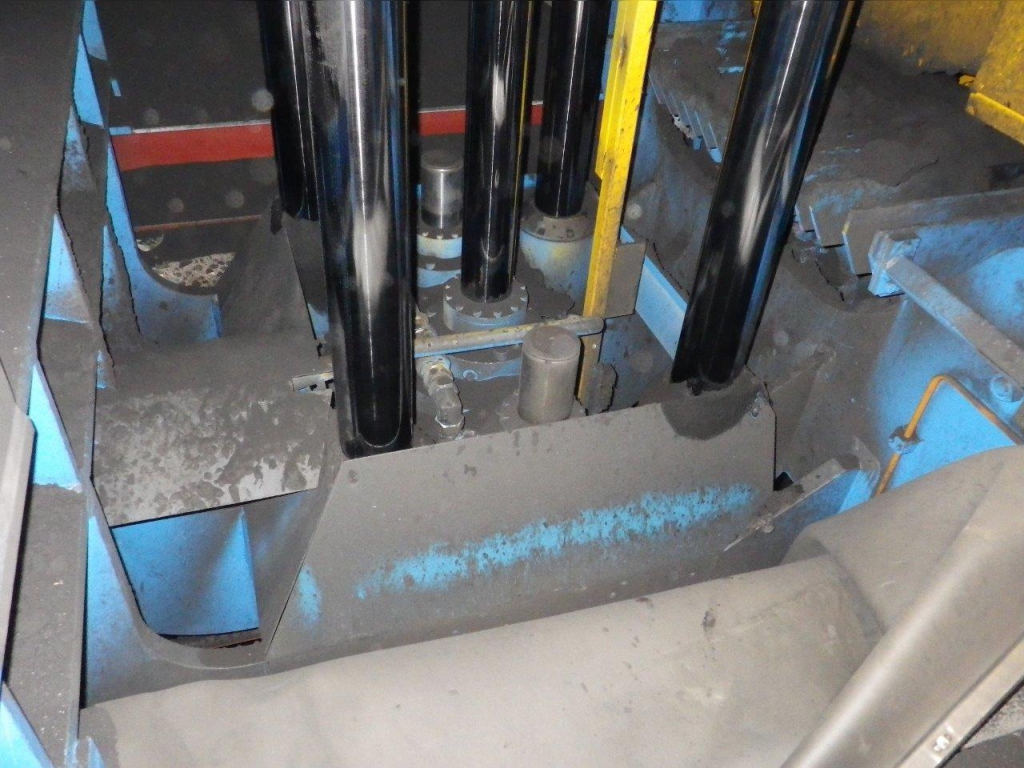

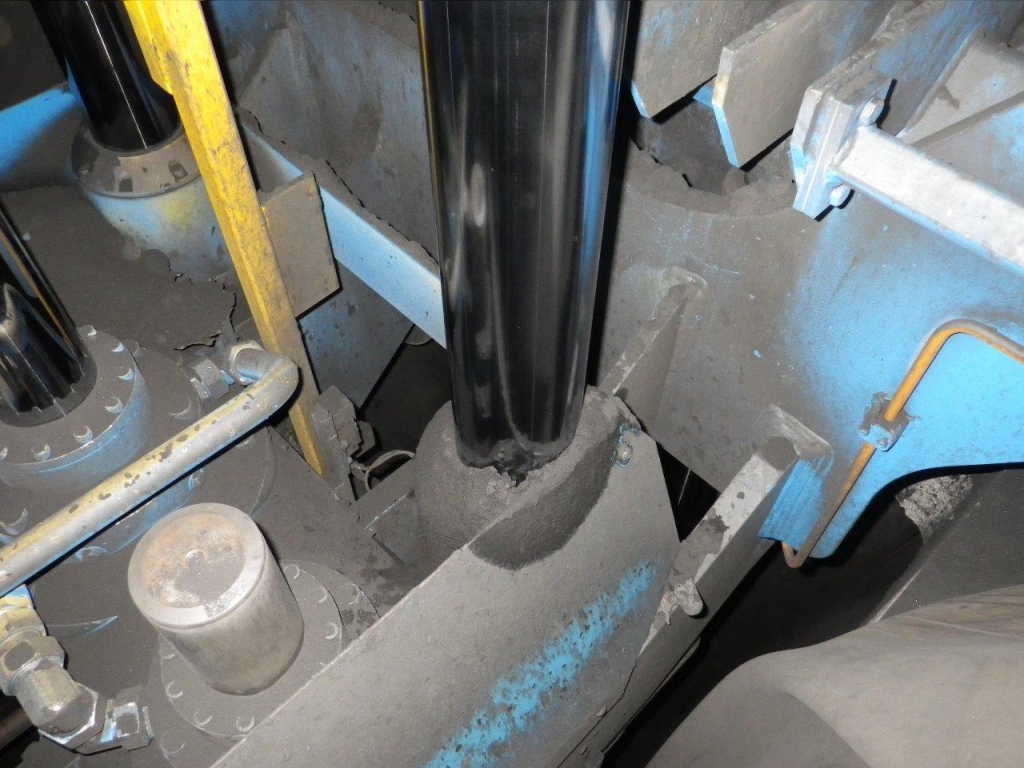

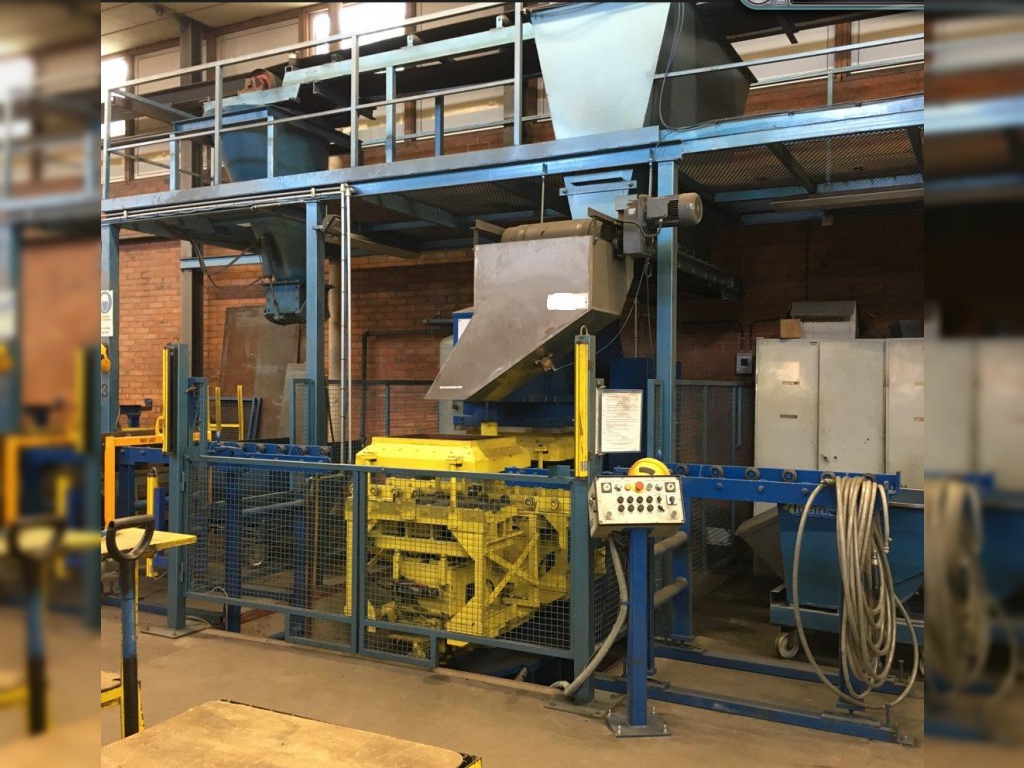

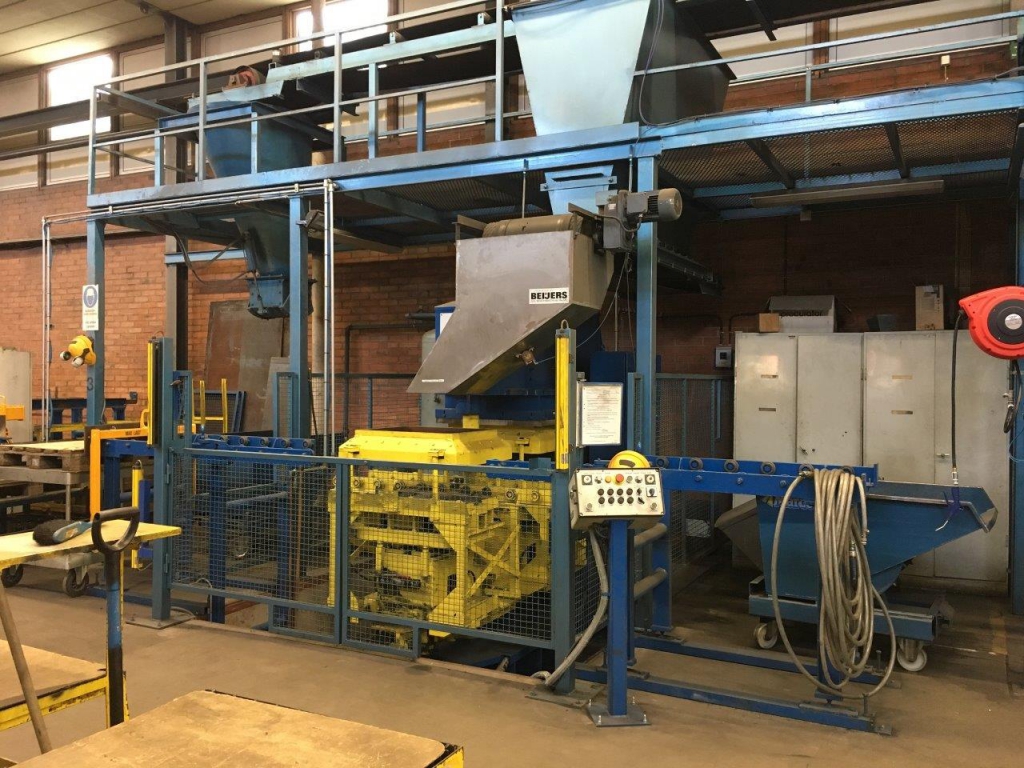

Horizontal Moulding Machine HWS HSP 1

Technical data:

Flask dimension: 650 x 500 x 250/250 mm

Maximum press stroke: 200 mm

Max. lifting stroke: 250 mm

Press force: up to 310 kN

Electrical connection: 5.5 kW

Voltage: 3,380 volts, 50 Hz

Compressed air connection: 1 ½"

Compressed air operating pressure: 6 byr gauge

Included in delivery:

  • Moulding machine

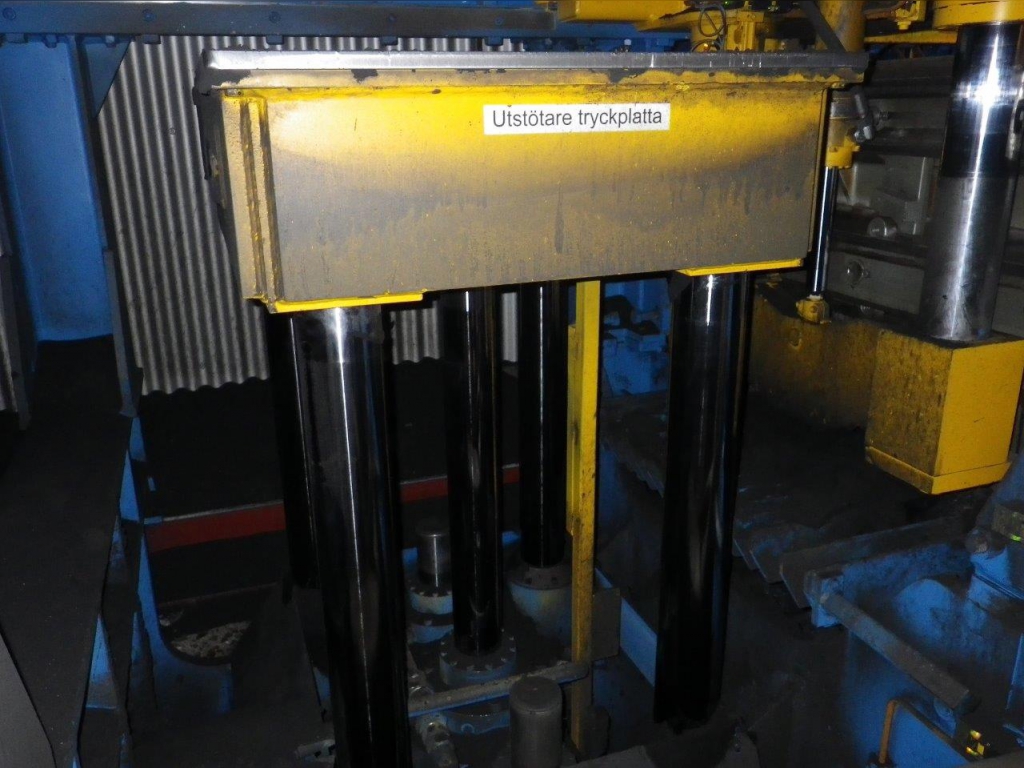

  • Sealing and pressing plate and elevation

  • 1x pair of roll lifters

  • 1x pair of filling frames

  • 1x pair of model plate carriers

  • 2-part form line roller conveyor

  • 1x pair of molding flasks

  • 2x model plates 600 x 450 x 30 mm -if still available-

  • Control Siemens S5 (upgrade to S7 on request)

EXW – ex Works, Sweden -as seen-
